Digital Flow Pump Test Stand

Name: Digital Flow Pump Test Stand
Brand: SLVMR Fuel Injection Equipments
Price: 30000 USD
Availability: InStock

Price 1.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Digital Flow Pump Test Stand Specification

Temperature
0C to 50C

Frequency
50 Hz

Power Supply
230V AC, 50Hz

Number of Specimens
1

Mounting Type
Floor Mounted

Port Size
Inlet/Outlet 1 BSP

Hardness
Standard Construction Material

Interface Type
Digital Panel

Display Type
Digital LED Display

Application
Testing Flow, Pressure, Efficiency of Pumps

Equipment Type
Digital Flow Pump Test Stand

Humidity
Up to 90% RH

Specimen Size
Standard Pump Sizes up to 2 Diameter

Accuracy
1% of Full Scale

Test Range
0.2 to 600 LPM

Response Time
< 2 seconds

Max Height
1200 mm

Resolution
0.1 LPM

Usage
Pump Performance Evaluation

Capacity
Max. 5 HP Pump

Machine Weight
Approx. 110 kg

Test Width
450 mm

Control Mode
Digital Control with Touch Interface

Digital Flow Pump Test Stand Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
1 Piece Per Month

Delivery Time
1 Months

About Digital Flow Pump Test Stand

Being well-equipped with the latest technology machinery & equipments and supported by a team of professionals, we are manufacturing and supplying a quality range of Digital Flow Pump Test Stand. This stand is manufactured by using best quality materials and components. We coat this stand with anti corrosive materials for protection against rust. Clients can avail our Digital Flow Pump Test Stand in different technical specifications as per their requirements.

Features:

Rugged construction
Longer functional life
Optimum performance

Further Details:

We are engaged in offering a wide range of Digital Flow Pump Test Stand with the following specification:

The Test Stand model E-2 is one of the most advanced machines for the calibration of ALCO 251 B&D Pumps and have got digital display of Fuel Delivery values. Model E-2P is further advance model with the Rack Setting controlled automatically for addition/removal of the shims for calibration of the F.I.Ps.

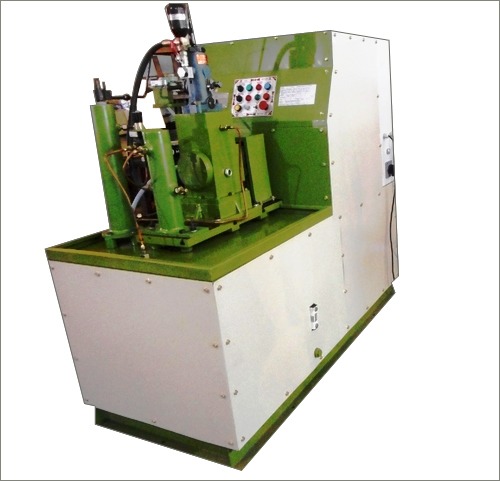

The Test Stands Models E-1 & E-Mask, have been specially designed for testing of Single Cylinder Fuel Injection Pumps of ALCO 251 B&D and Mak Diesel Locomotive and other Industrial Engines with the traditional delivery measurement system with precision "Glass Jars". The place of work allows to the operator a simple access to all controls and precision instruments mounted on the test stand.

We wish to point out that all the test stands manufactured by us, are sturdy and robust besides being energy savers, fulfill every particular test condition; being adequately powered and stable.

Thyristor drive for stepless speed variation of the spindle.
AC motor 5 hp.
Digital Tachometer with Stroke Counter, 4 digit display, 9999 rpm, Least Count and from 100-1200 stroke counting with a step of 100.
Glass Jar 500 cc.
Tank Capacity 30 ltrs. with baffled plates, oil level indicator, filter & strainer, etc.
Digital Oil Temperature Indicator cum Controller 0 - 99oC with least count 0.1oC and setting of Coarse and Fine mode with display of set point at any time, with 2 KW electric heater.
Separate Electric Motor 1/2 hp for feed pump with fuel supply of 0 - 3 kg/cm2.
Valve for the regulation of pressure and fittings for the pumps under test.
Ampere meter 0 to 25 Amps. with Least Count of 1 Amp, indicating Pump Load.
Pressure Gauge: Combined gauge 0 - 75 cm Hg and 0 - 200 psi (0 - 14 kg/cm2) for fuel supply and vacuum.
Measuring Stand, fitted with Accumulator, Surge tank with relief valve, solenoid and final oil delivery block.
Cam box fitted with bearings, roller and lifting mechanism with cam suitable for ALCO 251 B & 251 D or Mak Locomotive or any other Industrial Engines with rack setting device.
Overall Dimensions - Length 1600 mm, Width: 700 mm, Height: 1400 mm.
Weight: 750 kg.
Power Supply: AC 440/415 Volts, 3 Phase, 50 Hz.

* Technical Specifications are subject to Design and Development Changes.
Also available: Models for Fuel Injection Pumps having upto 12 in-line Cylinders.

Accurate and Reliable Pump Testing

Designed for widescale pump performance evaluation, the Digital Flow Pump Test Stand delivers unmatched accuracy (1% of full scale) and a high resolution of 0.1 LPM. The system supports a wide test range from 0.2 to 600 LPM, ensuring suitability for standard pump sizes up to 2-inch diameter. Its advanced digital touch control and quick response time streamline the testing process.

Intuitive Digital Control Interface

The stand features a digital touch interface and digital panel for effortless operation and clear data presentation. The digital LED display ensures pump efficiency, flow, and pressure readings are immediately visible, supporting quality verification and product development with reliable precision.

Robust Design and Industry Application

With a rugged construction for enhanced durability and floor-mounted installation, the test stand is optimized for rigorous industrial settings. It accommodates high humidity (up to 90% RH) and ambient temperatures from 0C to 50C, making it a versatile choice for dealers, manufacturers, exporters, and service providers across India.

FAQs of Digital Flow Pump Test Stand:

Q: How is the Digital Flow Pump Test Stand used for pump performance evaluation?

A: The stand is utilized by mounting the pump specimen onto the rig, connecting the inlet and outlet to the respective 1 BSP ports, and using the digital touch interface to configure test parameters. It then measures and displays the pumps flow rate, pressure, and efficiency in real time for accurate performance analysis.

Q: What range of pumps can be tested with this equipment?

A: This test stand accommodates standard pump sizes up to a 2-inch diameter and a maximum capacity of 5 HP. Its versatile design allows testing flow rates from 0.2 to 600 LPM, making it suitable for domestic and industrial pumps falling within these specifications.

Q: When should I use this pump test stand?

A: You should use the test stand whenever you need to verify the flow, pressure, or efficiency of a new or serviced pump. It is ideal for routine quality control, research and development, and pre-delivery inspection purposes.

Q: Where is the equipment typically installed and operated?

A: The Digital Flow Pump Test Stand is designed for floor mounting in laboratories, manufacturing plants, service centers, and testing facilities, particularly those handling a variety of pump types and sizes under controlled indoor environments.

Q: What is the process for operating the digital control with the touch interface?

A: To operate the test stand, power on the device using the 230V AC, 50Hz supply. Use the intuitive touch interface on the digital panel to select test parameters, initiate the test cycle, and observe results in real time on the digital LED display. The quick response system ensures efficient and seamless testing.

Q: What benefits does this test stand provide over conventional testing setups?

A: This stand offers precise measurement with 1% accuracy, rapid data output, and user-friendly digital controls, greatly enhancing productivity and reliability. Its robust design handles diverse operational conditions and simplifies documentation with digital readings, benefiting manufacturers, traders, and service providers.
